Spring SPI

SPI 全称为 Service Provider Interface，是一种服务发现机制。SPI 的本质是将接口实现类的全限定名配置在文件中，并由服务加载器读取配置文件，加载实现类。这样可以在运行时，动态为接口替换实现类。

本文对比JDK、Spring对SPI机制的实现。
在实际的应用场景。

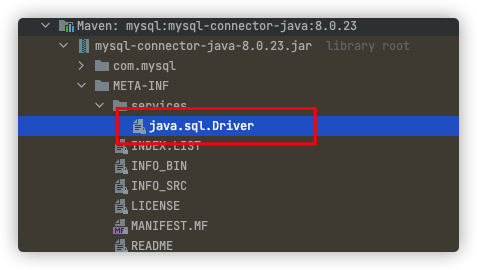

- jdbc驱动，不同的数据有不同的驱动。
com.mysql.cj.jdbc.Driver

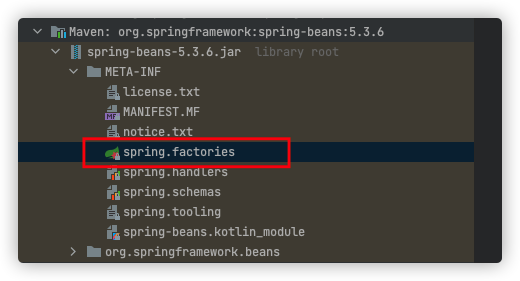

- spring 也使用spi机制，用于扩展实现。
org.springframework.beans.BeanInfoFactory=org.springframework.beans.ExtendedBeanInfoFactory
- dubbo也通过spi机制实现自定义扩展。
- 日志门面接口实现类加载，SLF4J加载不同提供商的日志是现类。

SPI

演示代码

JDK 中提供了一个 SPI 的功能，核心类是 java.util.ServiceLoader。其作用就是，可以通过类名获取在"META-INF/services/"下的多个配置实现文件。

ServiceLoader

META-INF/services下的文件(以Interface全路径命名)中添加具体实现类的全路径名。
使用程序使用ServiceLoader动态加载实现类(根据目录META-INF/services下的配置文件找到实现类的全限定名并调用classloader来加载实现类到JVM)
SPI的实现类必须具有无参数的构造方法

演示代码

└── src
    ├── main
    │   ├── java
    │   │   └── cn
    │   │       └── z201
    │   │           └── spi
    │   │               ├── SpeakChinese.java
    │   │               ├── SpeakEnglish.java
    │   │               ├── SpeakGerman.java
    │   │               ├── SpeakSPIService.java // 定义接口
    │   │               └── package-info.java
    │   └── resources
    │       └── META-INF
    │           └── services
    │               └── cn.z201.spi.SpeakSPIService // 配置文件，文件名以接口包和类名称组成。

接口

public interface SpeakSPIService {
    Object echo();
}

实现类

public class SpeakGerman implements SpeakSPIService{

    @Override
    public Object echo() {
        return "german : hallo";
    }
}

public class SpeakEnglish implements SpeakSPIService{
    @Override
    public Object echo() {
        return "english : hello";
    }
}

public class SpeakChinese implements SpeakSPIService {

    @Override
    public Object echo() {
        return "chinese : 你好";
    }
}

配置文件

SpeakSPIService就是接口的名称

cn.z201.spi.SpeakChinese
cn.z201.spi.SpeakGerman
cn.z201.spi.SpeakEnglish

测试

class SpeakSPIServiceTest {

    @Test
    public void setUp(){
        ServiceLoader<SpeakSPIService> serviceLoader = ServiceLoader.load(SpeakSPIService.class, Thread.currentThread().getContextClassLoader());
        Iterator<SpeakSPIService> iterator = serviceLoader.iterator();
        while (iterator.hasNext()) {
            SpeakSPIService speakSPIService = iterator.next();
            System.out.println("speakSPIService " + speakSPIService.echo());
        }
    }

}

Console

speakSPIService chinese : 你好
speakSPIService german : hallo
speakSPIService english : hello
# 实际工作中这么用肯定太难用了，这里小改动一下。

改进

使用注解标注类型，通过注解信息获取对应的实现类。

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
public @interface LanguageType {

    String language();
}

@LanguageType(language = "chinese")
public class SpeakChinese implements SpeakSPIService {

    @Override
    public Object echo() {
        return "chinese : 你好";
    }
}
@LanguageType(language = "english")
public class SpeakEnglish implements SpeakSPIService{
    @Override
    public Object echo() {
        return "english : hello";
    }
}
@LanguageType(language = "german")
public class SpeakGerman implements SpeakSPIService{

    @Override
    public Object echo() {
        return "german : hallo";
    }
}

// 工具类，根据类注解反射获取数据
public class LanguageTypeTool {

    public static SpeakSPIService language(String language){
        ServiceLoader<SpeakSPIService> serviceLoader = ServiceLoader.load(SpeakSPIService.class, Thread.currentThread().getContextClassLoader());
        Iterator<SpeakSPIService> iterator = serviceLoader.iterator();
        while (iterator.hasNext()) {
            SpeakSPIService speakSPIService = iterator.next();
            Class clazz = speakSPIService.getClass();
            LanguageType languageType = (LanguageType) clazz.getDeclaredAnnotation(LanguageType.class);
            if (null != languageType) {
                if (Objects.equals(language,languageType.language())) {
                    return speakSPIService;
                }
            }
        }
        return null;
    }
}

测试

    @Test
    public void setUp() {
        ServiceLoader<SpeakSPIService> serviceLoader = ServiceLoader.load(SpeakSPIService.class, Thread.currentThread().getContextClassLoader());
        Iterator<SpeakSPIService> iterator = serviceLoader.iterator();
        while (iterator.hasNext()) {
            SpeakSPIService speakSPIService = iterator.next();
            System.out.println(speakSPIService.echo());
        }
        SpeakSPIService speakSPIService = LanguageTypeTool.language("chinese");
        if (null != speakSPIService) {
            System.out.println(speakSPIService.echo());
        }
        speakSPIService = LanguageTypeTool.language("english");
        if (null != speakSPIService) {
            System.out.println(speakSPIService.echo());
        }
    }

Console

chinese : 你好
german : hallo
english : hello
chinese : 你好
english : hello

ServiceLoaderFactoryBean

通过Java提供的SPI的方式来加载相关实现类并注册到Spring容器中。

public class ServiceLoaderFactoryBean extends AbstractServiceLoaderBasedFactoryBean implements BeanClassLoaderAware {

   @Override
   protected Object getObjectToExpose(ServiceLoader<?> serviceLoader) {
      return serviceLoader;
   }

  // 这里引用的就是jdk中的ServiceLoader
   @Override
   public Class<?> getObjectType() {
      return ServiceLoader.class;
   }

}

演示代码

项目引用JDK-SPI的代码

      <dependency>
            <groupId>cn.z201.spi</groupId>
            <artifactId>Jdk-SPI</artifactId>
            <version>1.0.0-SNAPSHOT</version>
       </dependency>

配置类

/**
 * @author z201.coding@gmail.com
 **/
@Configuration
public class SpeakSPIServiceConfig {

    // 指定bean的id ，通过依赖查找或者依赖注入可以找到。
    @Bean("initBeanFactoryServiceLoaderFactoryBean")
    public ServiceLoaderFactoryBean serviceLoaderFactoryBean() {
        ServiceLoaderFactoryBean serviceLoaderFactoryBean = new ServiceLoaderFactoryBean();
        serviceLoaderFactoryBean.setServiceType(SpeakSPIService.class);
        return serviceLoaderFactoryBean;
    }

}

测试

    @Test
    public void setSpringUp() {
        // 创建BeanFactory 容器
        AnnotationConfigApplicationContext config = new AnnotationConfigApplicationContext();
        config.register(SpeakSPIServiceConfig.class);
        // 启动上下文
        config.refresh();
        ServiceLoader<SpeakSPIService> serviceLoader = config.getBean("initBeanFactoryServiceLoaderFactoryBean", ServiceLoader.class);
        displayServiceLoader(serviceLoader);
        // 关闭上下文
        config.close();
    }

    private void displayServiceLoader(ServiceLoader<SpeakSPIService> serviceLoader){
        Iterator<SpeakSPIService> iterator = serviceLoader.iterator();
        while (iterator.hasNext()) {
            SpeakSPIService speakSPIService = iterator.next();
            System.out.println("speakSPIService " + speakSPIService.echo());
        }
    }

Console

speakSPIService chinese : 你好
speakSPIService german : hallo
speakSPIService english : hello
# 既然用到了spring 当然不会这么简单就结束。

改进

接口实现类注册成bean。

 @Test
    public void setSpringRegisterBeanUp() {
        // 创建BeanFactory 容器
        AnnotationConfigApplicationContext config = new AnnotationConfigApplicationContext();
        config.register(SpeakSPIServiceConfig.class);
        // 启动上下文
        config.refresh();
        registerBean(config);
        lookupCollectionType(config);
        // 关闭上下文
        config.close();
    }


    private void registerBean(AnnotationConfigApplicationContext applicationContext){
        ServiceLoader<SpeakSPIService> serviceLoader = applicationContext.getBean("initBeanFactoryServiceLoaderFactoryBean", ServiceLoader.class);
        Iterator<SpeakSPIService> iterator = serviceLoader.iterator();
        while (iterator.hasNext()) {
            SpeakSPIService speakSPIService = iterator.next();
            Class clazz = speakSPIService.getClass();
            LanguageType languageType = (LanguageType) clazz.getDeclaredAnnotation(LanguageType.class);
            if (null != languageType) {
                applicationContext.registerBean(languageType.language(),clazz);
            }
        }
    }

    /**
     * 单一类型集合查找
     *
     * @param beanFactory
     */
    private void lookupCollectionType(BeanFactory beanFactory) {
        if (beanFactory instanceof ListableBeanFactory) {
            ListableBeanFactory listableBeanFactory = (ListableBeanFactory) beanFactory;
            Map<String, SpeakSPIService> beansMap = listableBeanFactory.getBeansOfType(SpeakSPIService.class);
            // getBeansOfType 匹配所有类型的 bean，无论是单例、原型还是 FactoryBean , bean name 作为key value 作为对象
            beansMap.forEach((key, value) -> {
                System.out.println("单一类型集合查找  " + key + " " + value.echo());
            });
        }
    }

Console

单一类型集合查找  chinese chinese : 你好
单一类型集合查找  german german : hallo
单一类型集合查找  english english : hello
